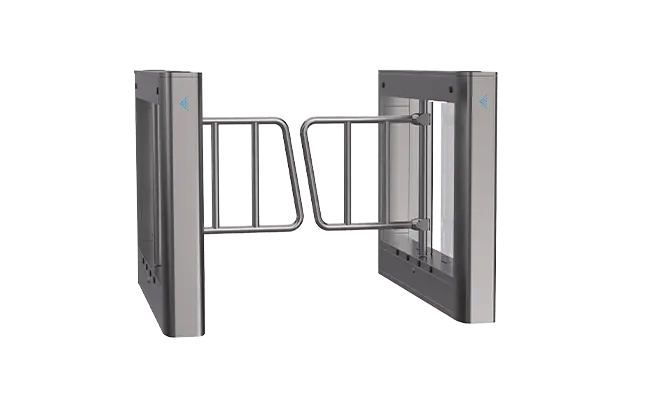

The YET2006 swing turnstiles are engineered with a reasonable and reliable design, ensuring low noise and smooth operation. These turnstiles come equipped with advanced features such as anti-tail and anti-reverse pass functions, card memory settings, and automatic reset. The YET2006 is suitable for various applications, including indoor and outdoor use, and can be integrated with different card reading systems.
Key Features:
- Reasonable and reliable design for smooth operation
- Low noise and long service life
- Anti-tail and anti-reverse pass functions for enhanced security
- Card can be set with 'with memory' or 'without memory' functions
- Automatic reset function for secure access control
Size (L*W*H) | 1400*160*980mm |
Material | Top δ=1.2mm/ body δ=0.9mm |
Filling Panel material | 8mm clear Acrylic |
Arm material | 10mm clear Acrylic |
Pass width | 600-900mm |
Height From Ground (upper part) | 820mm |
Height From Ground (lower part) | 200mm |
Movement | Brushless Movement of Swing Gate |
Power supply | 24V150W |
Input voltage | AC100V~240V,50/60HZ |
Drive Unit | DC brushless motor |
Pass rate | 35-50 persons/minute |
Open Speed | 0.5s/1.5s |
Sensor | 6 pairs |
Indicator Light | RGB light |
Control Unit | Brushless control system |
Noise | ≤65dB |
Temperature | -20℃~+70℃ |
Humidity | ≤90% No condensation |
IP | IP4X |
Environment | Indoor and outdoor (outdoor with canopy) |
